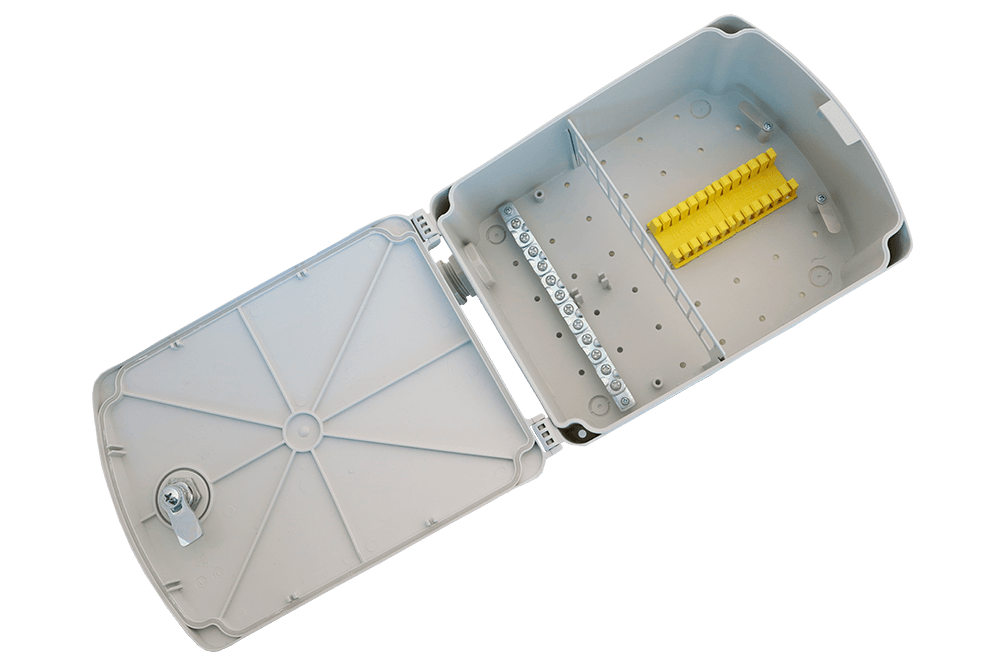

Nestor OptoBox 48 Plug and Play Home Kit is designed especially for networks built by using Plug and Play method. Delivered as a Plug and Play home kit including connectorized indoor cable, adapters, slack reels and all needed materials for FTTH connections in microduct networks

Features

• Mounting and grounding bar with grounding clips and fixing clamp for incoming microduct
• Removable and hinged lid
• Equipped with lock
• Place for two SC-S or LC-D adapters
  • Adapters can be stacked on top of each other in the holder
  • One pre-installed adapter according to selected connector type
• Two slack reels for drop cable and indoor cable
• One slack reel can hold up to
  • 15 m of 3 mm cable
  • 30 m of 2 mm cable
  • 130 m of 1 mm cable
• Inlets and outlets
  • One pre-installed M20 x 1.5 cable gland for Ø 7-14mm cable diameters
  • One stepped grommet for optional outlet for max. Ø 9mm cable diameters
• Dimensions: W156 mm x H213 mm x D96 mm
• IP code: IP 66
• Material: PC (polycarbonate), UL 94 V-2 classified
• Color: RAL 7035 (grey)
