Nestor OptoBox 48 is suitable for terminating and jointing different types of optical cables and microducts. It is designed especially for networks built by using Plug and Play method

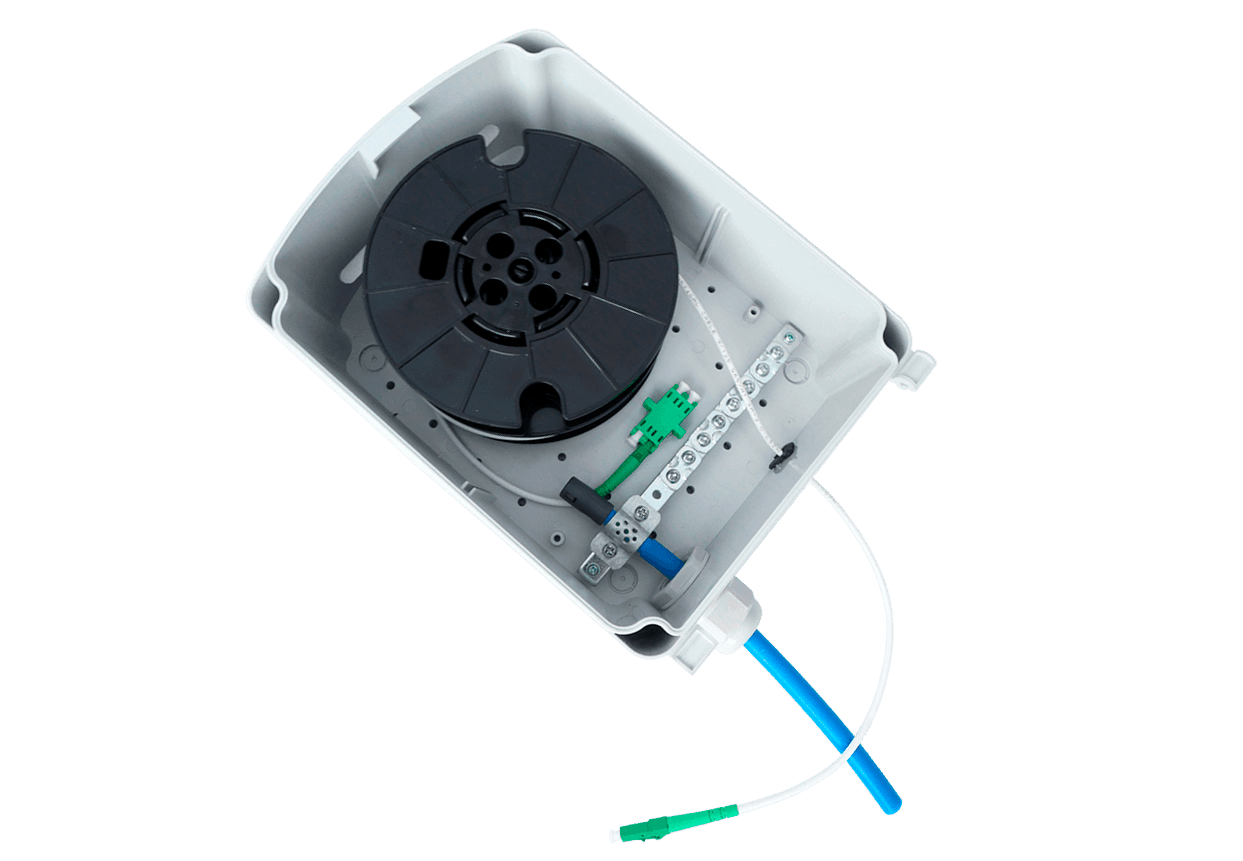

Delivered as a plug and play home kit or as a pre-installed pigtail kit including adapters and pigtails according to customer specifications. Also available as pre-assembled pigtail cable kit with 0-100 m connectorized indoor cable with tested connectors pre-installed to adapters.

Features

• Mounting and grounding bar with grounding clips
• Removable and hinged lid
• Equipped with lock
• Space for slack reels
• Capacity
  • 48 fiber splices with LC-connectors
  • 24 fiber splices with SC-connectors
• Place for adapters
  • Up to 2 pcs without adapter plate (SC-S or LC-D)
  • Up to 12 pcs with adapter plate (SC-D or LC-Q)
• Inlets and outlets
  • Bottom
    • 1 pc M20 x 1.5 cable gland for Ø 7-14mm cable diameters
    • 1 pc optional M20 x 1.5 cable gland for Ø 7-14mm cable diameters
    • 24 pcs optional outlets for max. Ø 9mm cable diameters
  • Back wall
    • 4 pcs optional outlets for max. Ø 9mm cable diameters
• Dimensions: W156mm x H213mm x D96mm
• IP code: IP 66
• Material: PC (polycarbonate), UL 94 V-2 classified
• Color: RAL 7035 (grey)
